Small Chisel Plane

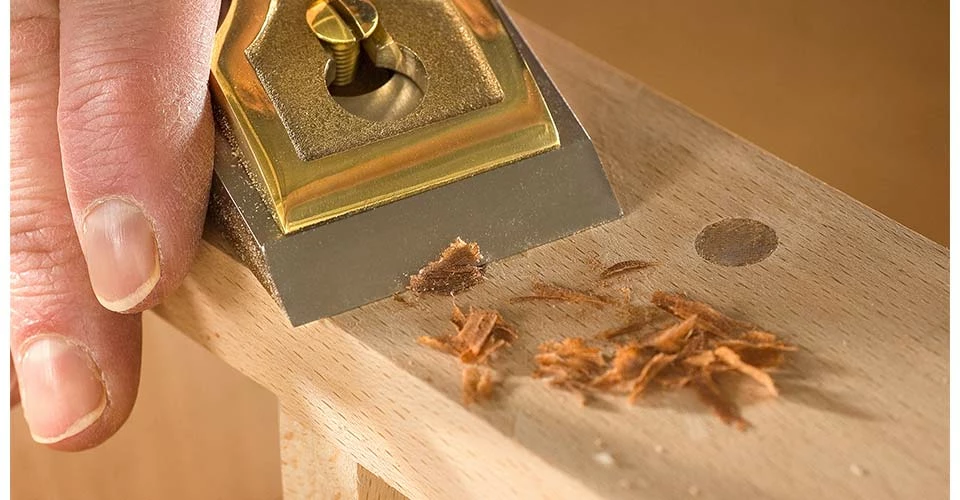

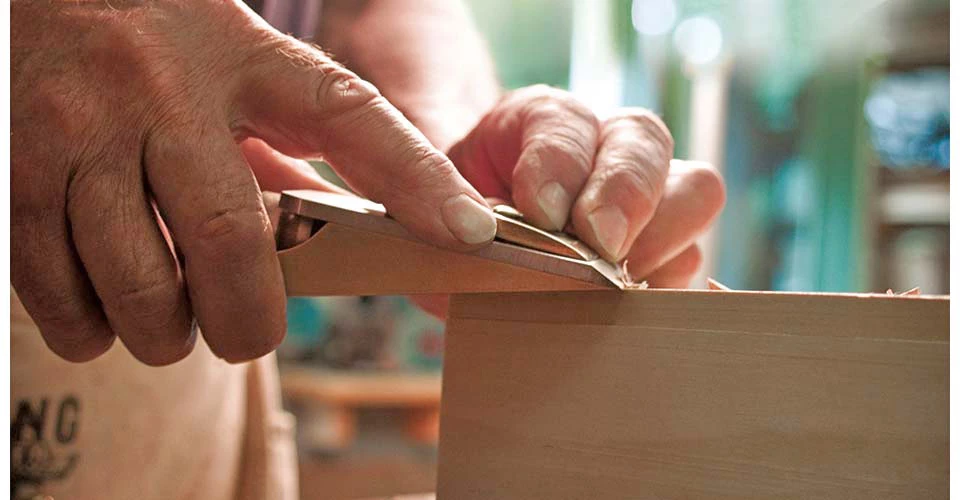

A Chisel Plane can accomplish tasks impossible for normal planes. Because it lacks support in front of the blade, a Chisel Plane does not function like a typical plane but rather more like a paring chisel with very precise depth control. It makes a wonderful clean up tool, excellent at removing dry glue, flush-trimming plugs or joints, smoothing rabbets, and reaching into right-angle corners.

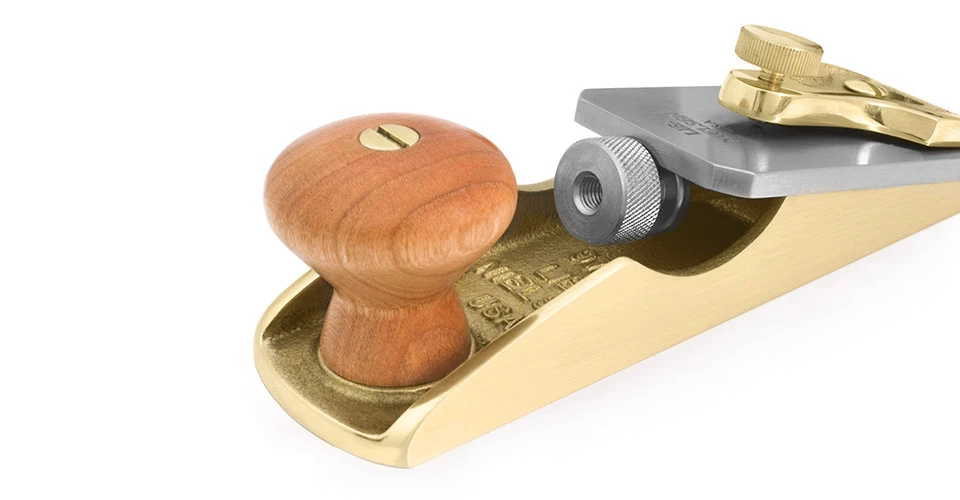

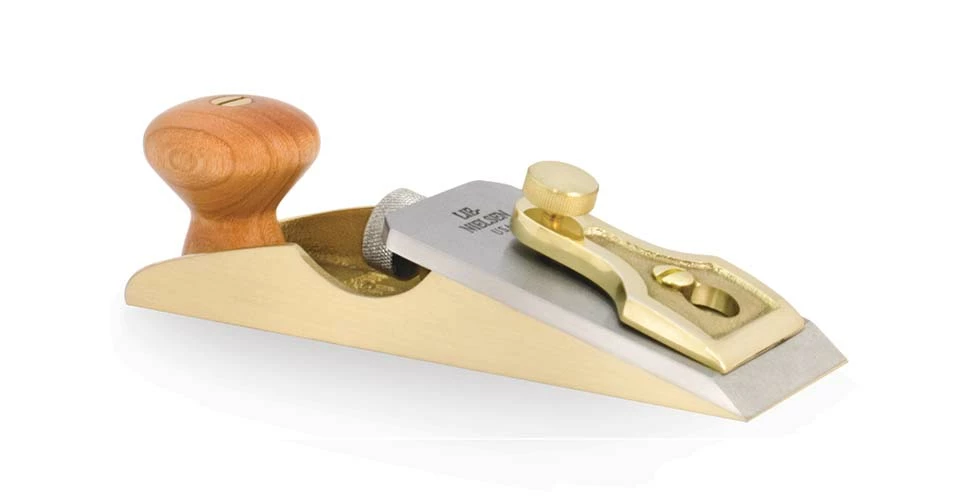

Our Chisel Plane is a very handy half-sized version of the original Stanley No. 97. Bronze body and cap, Cherry knob, Stainless Steel blade adjuster with hefty 3/16″ blade.

6-1/2″ long x 1-3/4″ wide.
Blade is 1-3/4″ wide x 3/16″ thick, A2 Tool Steel.
Weight is 2.35 lbs.

View our YouTube video “Chisel Plane: Setup and Use” here:

Materials:

We use Manganese Bronze for the body. Castings are fully stress-relieved, a process that removes inherent stresses and ensures that the tool will remain flat and true. The cap is also Manganese Bronze. Cherry knob, other parts are Brass and Stainless Steel.

The blade is A2 Tool Steel hardened to Rockwell 60-62, cryogenically treated and double tempered. Our heat-treating technique ensures that the blade will take and hold a very fine edge for a long time. After heat treating, the blade is fully surface ground on the top, back, and cutting edge, giving a smooth, flat surface that will take a mirror finish very quickly.

Maintenance:

The Bronze bodies are lapped to a tolerance of less than .001″. Depending on how much you use your tool, an occasional light sanding with 400 or finer wet/dry paper on a flat surface will keep the sole in as-new condition. A light oiling on the threaded rod and adjuster nut will keep them moving freely. We recommend Jojoba Oil, a plant based oil product that is non-toxic, odor-free and easy to use. Also, in our shop, we use a fine abrasive handblock to remove any light surface oxide from tool bodies and blades. Jojoba Oil and abrasive handblocks are available from us.

Many people like the patina that Bronze gets with age and use, but if you wish to keep the finish bright, a little brass polish is in order.

Find everything you need for tool care.

Guarantee:

Materials and workmanship are guaranteed for the life of your tool. Call for repairs or replacement parts. We are available for advice if you ever have a problem using your tool.

Proposition 65 Notice:

Bronze and brass alloys contain lead, a chemical known to the State of California to cause cancer and birth defects, or other reproductive harm. Wash hands after handling.
