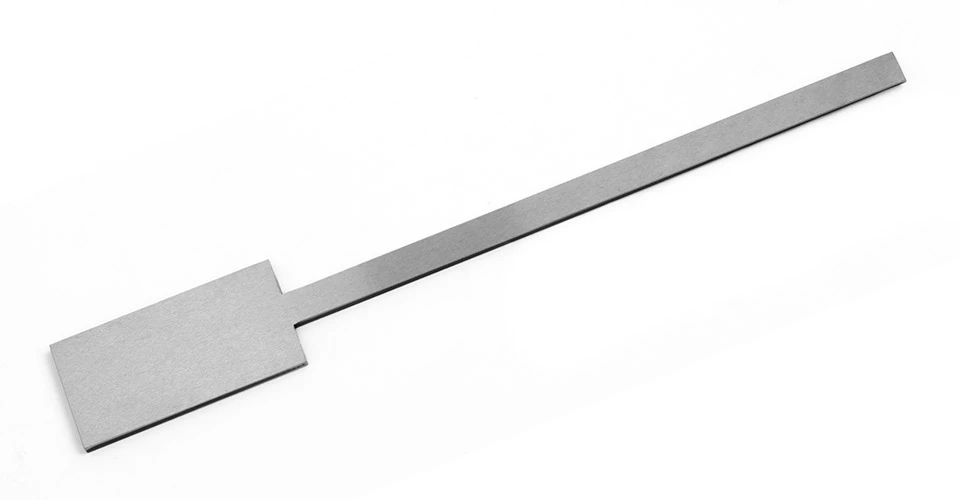

Rabbeting Iron Blank, 1″

Rabbeting Plane Iron Blanks

Rabbeting Plane Iron Blanks (O1 Tool Steel, unhardened), with the tang centered, are for creating traditional rabbeting planes. All are 8″ (20.32cm) long, have a bit length of 2-3/16″ (5.55cm) and are tapered from 1/8″ (3.17mm) to 1/16″ (1.58mm) over the total length of the blade.

Sizing Information:

• 5/8″ = .813″ (2.07cm) blade width , 3/16″ (4.76mm) tang width.
  For 5/8″ rabbeting planes.

• 3/4″ = .937″ (2.38cm) blade width, 1/4″ (6.35mm) tang width.
  For 3/4″ rabbeting planes.

• 7/8″ = 1.063″ (2.70cm) blade width, 5/16″ (7.94mm) tang width.
  For 7/8″ rabbeting planes

• 1″ = 1.18″ (3.00cm) blade width, 3/8″ (9.53mm) tang width.
  For 1″ rabbeting planes.

• 2″ = 2-3/16″ (5.56 cm) blade width, 1/2″ (1.27 cm) tang width.
  For 2″ rabbeting planes.

Materials:

Rabbeting Plane Iron Blanks are made from annealed AISI O1 tool steel, unhardened. Irons cannot be returned once they have been cut or heat treated.
