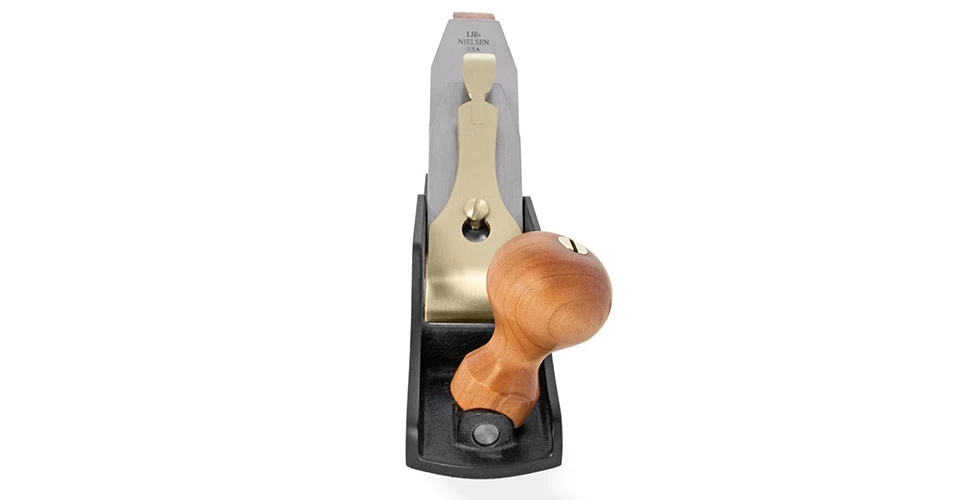

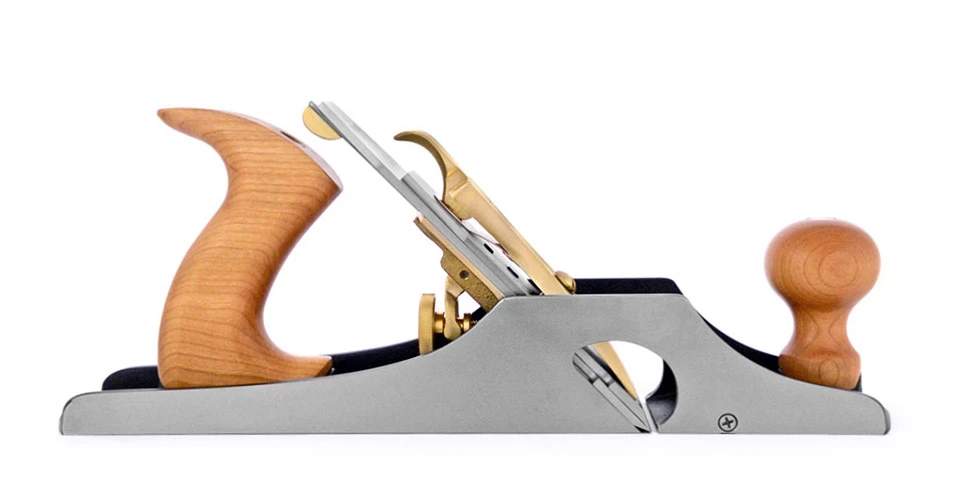

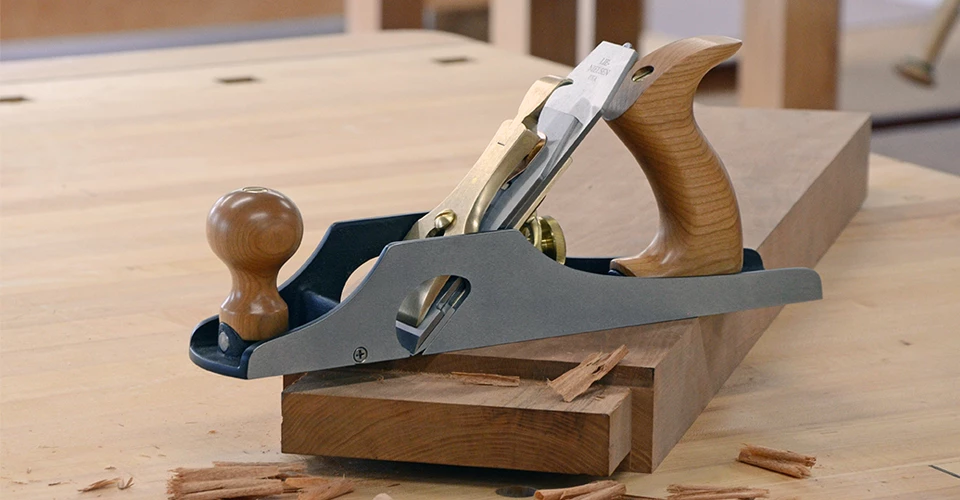

No. 10-1/4 Bench Rabbet Plane

Also known as a Carriage Maker’s or Jack Rabbet Plane, this is the largest rabbet plane made. Based on the Stanley 10¼, which went out of production in the mid-1940s, we modified the design to fit the Bedrock format. Adjustable side nickers make clean, cross-grain cuts. Both handle and knob can tilt left or right to give better access and control in tight corners.

12-3/4″ long.
Blade is 2-1/8″ wide x .130″ thick.
Iron body only, 5 lbs.

Materials:

The body is cast from Ductile Iron, a very strong alloy that will take a lot of abuse. These castings are fully stress relieved, a process that removes inherent stresses and ensures that the tool will remain flat and true.

The blade is A2 cryogenically treated Tool Steel, hardened to Rockwell 60-62 and double tempered. Our heat treating technique ensures that the blade will take and hold a very fine edge for a long time. After heat treating, the blade is fully surface ground on the top, back, and cutting edge, giving a smooth, flat surface that will take a mirror finish very quickly. The thick blade provides solid chatter-free cutting. The cap is Manganese Bronze.

This plane comes with a new and improved Stainless Steel yoke installed in the Frog. The Steel is stronger than Bronze and will be more resistant to wear over time.

Maintenance:

All Bench Plane bodies are surface ground flat and square to a
tolerance of .0015″. Depending on how much use your tool gets, an occasional light sanding with 320 grit or finer wet/dry paper on a flat surface will keep the sole in as-new condition. Tools with Iron bodies should be kept lightly oiled or waxed to prevent rust. We recommend Jojoba Oil, a plant based oil product that is non-toxic, odor-free and easy to use. Also, in our shop, we use a fine abrasive handblock to remove any light surface oxide from tool bodies and blades. Jojoba Oil and abrasive handblocks are available from us.

A light oiling on the threaded rod, the Brass adjuster nut and the lateral blade adjustment lever will keep them moving freely. Many people like the patina that Bronze gets with age and use, but if you wish to keep the finish bright, a little brass polish is in order. The Cherry knob and handle are oiled and buffed with wax to produce a natural finish. Wipe with oil as desired to refresh.

Find everything you need for tool care.

Guarantee:

Materials and workmanship are guaranteed for the life of your tool. Call for repairs or replacement parts. We are available for advice if you ever have a problem using your tool.

Proposition 65 Notice:

Bronze and brass alloys contain lead, a chemical known to the State of California to cause cancer and birth defects, or other reproductive harm. Wash hands after handling.
