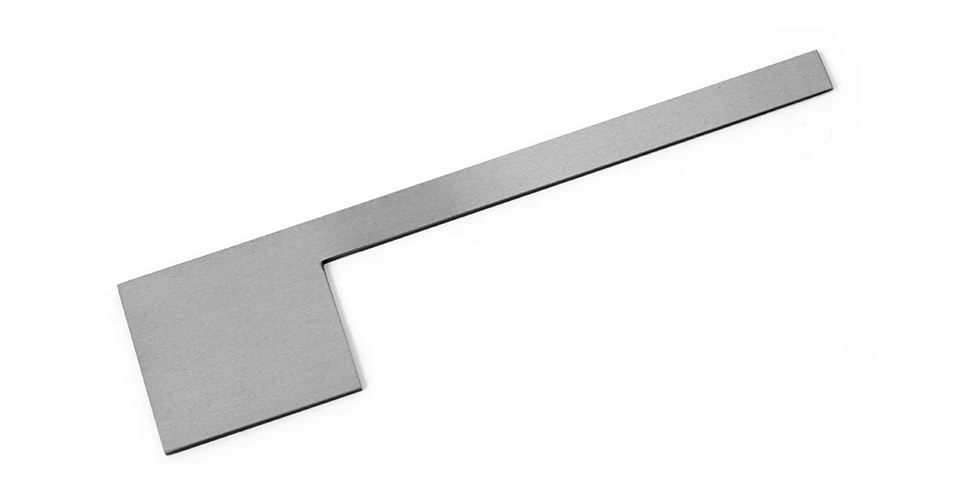

Molding Plane Iron Blank, 2″

Molding Plane Iron Blanks

Made of annealed AISI O1 tool steel. The Tapered Molding Plane Iron Blanks offered are designed to cover all the widths necessary to create a full set of Hollows and Rounds. All are 8″ (20.32cm) long, have a bit length of 2-3/16″ (5.55cm) and are tapered from 1/8″ (3.17mm) to 1/16″ (1.58mm) over the total length of the blade.

Sizing Information:

• 1/4″ (6.35mm) blade width, 3/32″ (2.38mm) tang width.
  For numbers 1 & 2 hollows and rounds.

• 3/8″ (9.52mm) blade width, 3/32″ (2.38mm) tang width.
  For numbers 3 & 4 hollows and rounds.

• 1/2″ (1.27cm) blade width, 5/32″ (3.96mm) tang width.
  For numbers 5 & 6 hollows and rounds.

• 5/8″ (1.58cm) blade width, 11/64″ (4.36mm) tang width.
  For numbers 7 & 8 hollows and rounds.

• 3/4″ (1.90cm) blade width, 3/16″ (4.76mm) tang width.
  For numbers 9 & 10 hollows and rounds.

• 7/8″ (2.22cm) blade width, 7/32″ (5.55mm) tang width.
  For numbers 11 & 12 hollows and rounds.

• 1-1/8″ (2.85cm) blade width, 9/32″ (7.14mm) tang width.
  For numbers 13 & 14 hollows and rounds.

• 1-3/8″ (3.49cm) blade width, 11/32″ (8.73mm) tang width.
  For numbers 15 & 16 hollows and rounds.

• 1-5/8″ (4.12cm) blade width, 13/32″ (1.03cm) tang width.
  For numbers 17 & 18 hollows and rounds.

• 2″ (5.08 cm) blade width, 1/2″ (1.27 cm) tang width.

Materials:

Molding Plane Iron Blanks are made from annealed AISI O1 tool steel, unhardened. Irons cannot be returned once they have been cut or heat treated.
