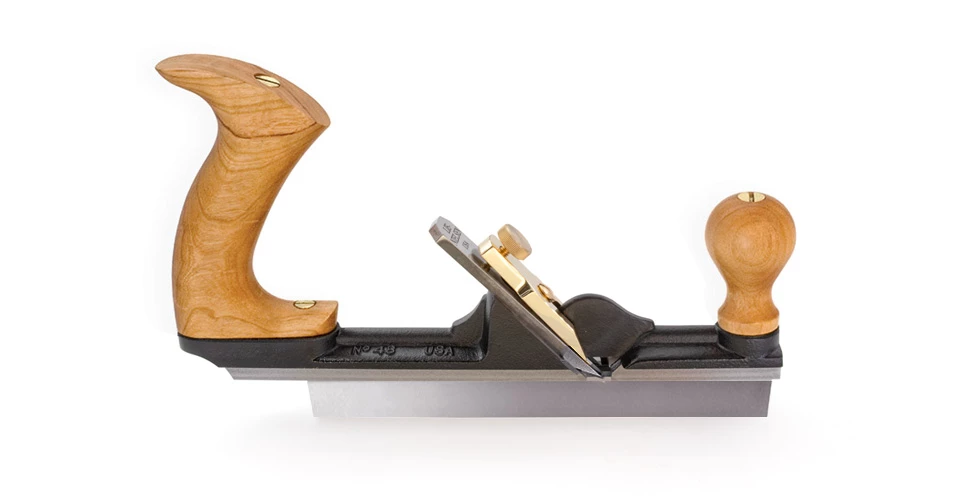

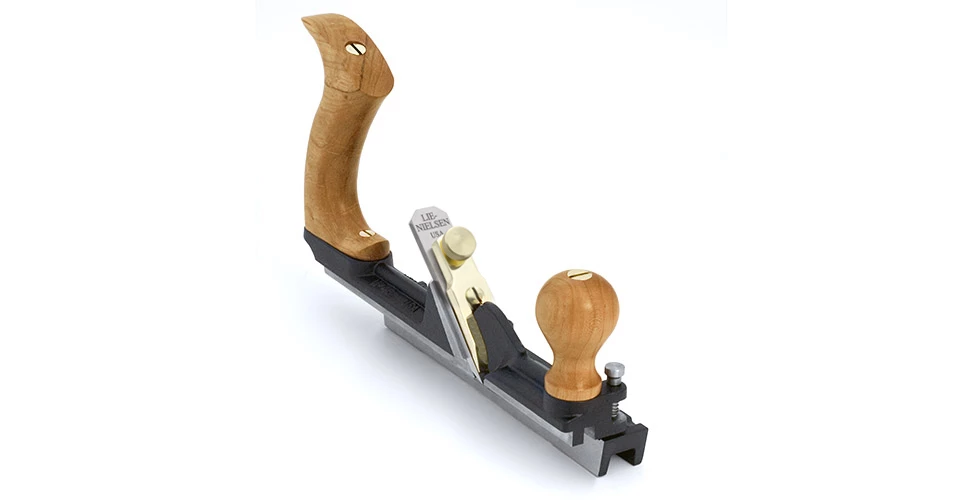

No. 48 Large Tongue and Groove Plane (3/4″)

Based on the Stanley No. 48 and 49, our Tongue and Groove Planes are more heavily built for sound performance with a very thick blade. Also, rather than having two separate blades, ours is a single forked blade that registers on the milled body casting to ensure squareness and equal depth of cut on both sides. Since this is a heavy stock removal tool, no fine depth adjuster is needed.The blade is 3/16″ thick A2 steel. The fence is attached to the base with a center pivot screw and can be rotated and locked in tongue-cutting or groove-cutting positions.

The No. 48 Tongue and Groove Plane

Centers on ¾” stock, leaving a ¼” wide tongue and .3125″ deep grooves. On narrower or wider boards, the tongue will be offset from center, but still hidden within the joint. 2.90 lbs.

The No. 49 Tongue and Groove Plane

A companion Tongue and Groove Plane, is made to center on ½” stock. It will cut a .166″ wide tongue and .230″ deep grooves. 2.35 lbs.

View our YouTube video on “Tongue & Groove Planes” below:

Materials:

The body is cast from Ductile Iron, a very strong
alloy that will take a lot of abuse. These castings are fully
stress-relieved, a process that removes inherent stresses and
ensures that the tool will remain flat and true.

The blade is A2 Tool Steel hardened to Rockwell 60-62. Cherry knob
and handle, other parts are Brass and Stainless Steel.

Maintenance:

Tools with Iron bodies should be kept lightly oiled or waxed to prevent rust. We recommend Jojoba Oil, a plant based oil product that is non-toxic, odor-free and easy to use. Also, in our shop, we use a fine abrasive handblock to remove any light surface oxide from tool bodies and blades. Jojoba Oil and abrasive handblocks are available from us.

Find everything you need for tool care.

Guarantee:

Materials and workmanship are guaranteed for the life of your tool. Call for repairs or replacement parts. We are available for advice if you ever have a problem using your tool.

Proposition 65 Notice:

Bronze and brass alloys contain lead, a chemical known to the State of California to cause cancer and birth defects, or other reproductive harm. Wash hands after handling.
